一、【馳誠】分體式吸料機【概述】
分體式吸料機是我公司經過不懈努力，在廣泛吸收國外同類產品的基礎上開發研制的新產品，目前它是國內較為先進、理想、完善的粉狀料、粒狀料、粉粒料混合料的真空輸送設備。
二、【馳誠】分體式吸料機【特點】
＿＿特點＿＿＿＿＿
☆主機與料斗分體設計，安全、簡便
☆獨立濾清裝置，方便清除積塵
☆不銹鋼料斗
☆微電腦操作控制程序
☆過載、缺料報警
☆700G采用高速整流馬達，體積小、吸力強，適合用于新料輸送
☆800G,800G2采用感應式高壓式風機，噪音少、壽命長。
☆800G,800G2具有逆轉自動清除粉塵功能。
＿＿FEATURE＿＿＿＿＿
☆Main machine separated from the hopper ,easy and safe to operate.
☆Independent filter for easy cleaning.
☆Stainless steel hopper.
☆Microcomputer control.
☆Alarm for overload and short of material.
☆700G equipped with high-speed rectifier motor with delicate size and strong suction force—suitable force—suitable for new materials.
☆800G/800G2 with induction high pressure pump—with low noise and long service time.
☆800G and 800G2 are designed with auto reverse cleaning devices.

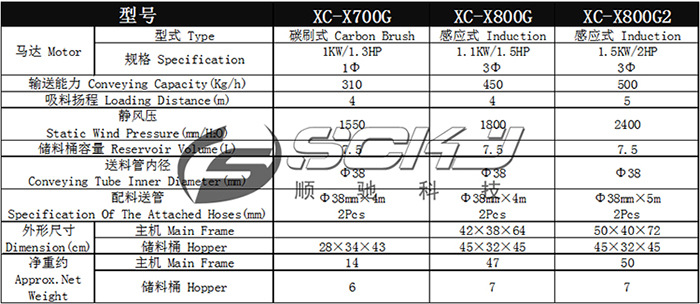

三、【馳誠】分體式吸料機【技術參數】
參數中的輸送能力及吸料揚程是以ABS原料為測試材料得出的數據，實際參數根據塑料比重、形狀及輸送長度、高度、管路特征、參數設定等因素改變。
吸料機在輸送熱料時、料管需選配耐160度高溫料管。
Conveying capacity and loading distance are tested with ABS materials ,the exactly specification will depend on the proportion ,shape ,conveying length ,height ,pipe property and specification setting .Heat-resistant(160℃) pipes should be used when conveying hot material.
產品規格若有改變，恕不另行通知。
We reserve the right to change specifications without prior notice.

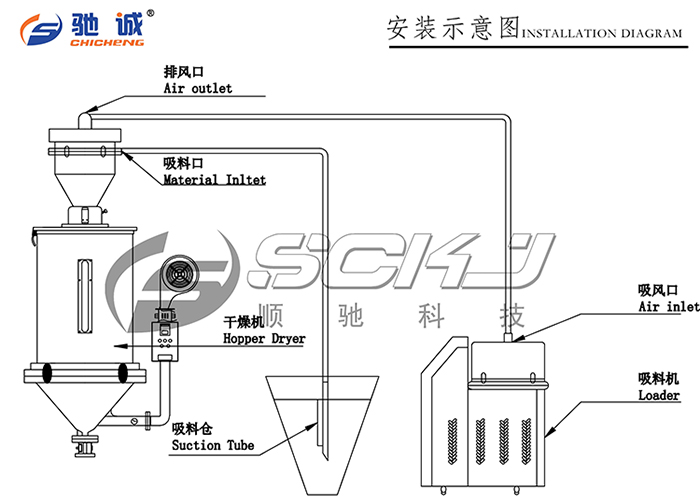

四、【馳誠】分體式吸料機【安裝示意圖】
